VT-OEL-630

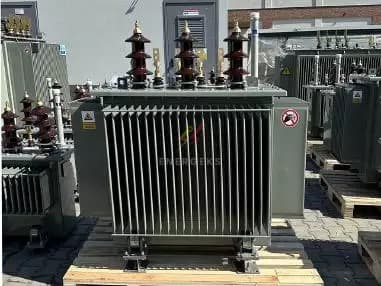

Oil-immersed transformer 630 kVA, 20/0.4 kV
Hermetically sealed oil-immersed distribution transformer (ONAN) for secondary substations and industrial plants. EU 548/2014 Tier 2 compliant, delivered with test report.
🔒 Prices visible after registration and approval
Technical data
| Rated power | 630 kVA |
|---|---|
| Primary voltage | 20 kV |
| Secondary voltage | 0.4 kV |
| Cooling | ONAN |
| Standard | EN 50588-1 / IEC 60076, EU 548/2014 Tier 2 |
| Vector group | Dyn5 |
| Impedance voltage uk | 4 % |
| No-load losses P0 | 378 W |
| Load losses Pk | 4600 W |
| Frequency | 50 Hz |
| Tapping range | ±2×2,5 % |
| Total weight | 1650 kg |
| Dimensions (L × W × H) | 1450 × 880 × 1700 mm |
| Lead time | approx. 4 weeks |
